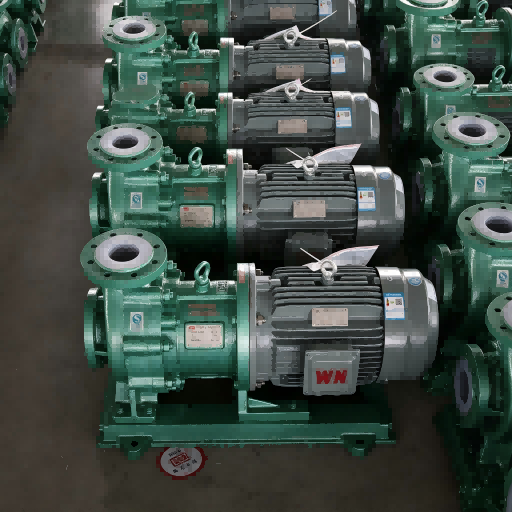

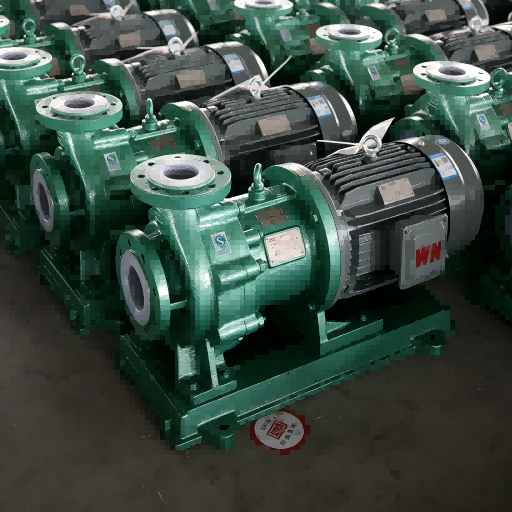

CQB80-65-125FD Fluorine Plastic Alloy Magnetic Drive Pump

This product is suitable for:Fine chemicals. petrochemicals, acid and alkali production. non-ferrous metallurgy. acid washing processes. rareearth separation, pesticides, dyes, pharmaceuticals. papermaking. electroplating. electronics industries, especiallyfor the transportation of non particle liquids that are highly toxic, flammable, and explosive.

주문(MOQ) :
1
제품 원산지 :
CHINA

지금 문의하세요

카테고리

어떻게 도와드릴까요?

귀하에게 편리한 방법으로 문의하실 수 있습니다. 우리는 이메일이나 전화를 통해 연중무휴 24시간 연락 가능합니다.

문의하기

신제품

설명

Cancelled the shaft seal and used magnetic coupling to indirectly drive,completely eliminating the trouble of dripping and never polluting thesite. Due to the use of "fluoroplastic alloy" for the overcurrent part of thepump. It can continuously transport corrosive media such as acids, alkalis,and strong oxidants of any concentration without damage.

The driving device adopts an active magnetic coupling directly installedon the motor shaft, and the pump chamber is completely closed.Through magnetic coupling, the impeller with magnetic steel on thepump shaft is indirectly driven to rotate, which is compact, safe andenergy-saving.

Although the part in contact with the liquid is fluoroplastic, the pumpbody substrate is made of metal material, so the pump body canwithstand the weight and mechanical impact of some pipelines, and issturdy and durable.

This CQB80-65-125FD fluorine lined magnetic pump is the ideal fluid conveying equipment for industries with strict anti-leakage and anti-corrosion requirements, widely applied in the following production processes:

Petrochemical & Fine Chemical Industry: Circulation, transfer and feeding of acid-base reaction liquid, organic solvent, catalyst and intermediate chemical products;

Acid & Alkali Manufacturing Plant: Continuous delivery of concentrated acid, dilute alkali and oxidizing corrosive media;

Non-Ferrous Metallurgy & Rare Earth Separation: Acid leaching solution, rare earth extraction liquid and metal pickling waste liquid transportation;

Automobile Manufacturing Pickling Line: Phosphating liquid, rust removal acid and surface treatment chemical circulation;

Pharmaceutical & Pesticide Production: Toxic drug raw material liquid, pesticide emulsifier and fermentation liquid transfer;

Electroplating & Electrolysis Industry: Plating bath liquid, etching solution, chromate and nickel plating liquid circulation;

Papermaking & Printing & Dyeing: Bleaching agent, dyeing slurry and waste water treatment chemical delivery;

Environmental Protection Waste Water Treatment: Corrosive waste acid/alkali;

Model	Flow rate	Head	Efficiency	NPSH	Suctionx Outlet	Motor power	Weight
CQB80-65-125FD	35	22	51	4	80*65	7.5	175
	50	20	56
	60	18	55

Q1: Can this magnetic pump run dry? What are the daily maintenance suggestions?

A: Dry running is strictly forbidden. The internal silicon carbide bearings rely on conveyed liquid for lubrication and cooling, dry friction will damage bearings and containment sleeve rapidly. Regularly check pipeline air intake; drain residual liquid inside pump if long-term shutdown to prevent crystallization and corrosion.

Q2: Which industries is this pump applied to, and can you provide customized service?

A: Widely used in fine chemical, electroplating, rare earth metallurgy, pharmaceutical, flue gas desulfurization, printing & dyeing pickling lines. Wolong supports customization: special motor voltage, extended base, dry-run protection device, modified fluoroplastic parts for high temperature resistance.
