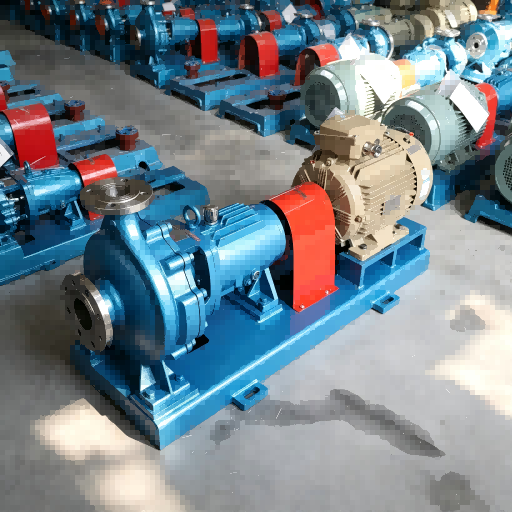

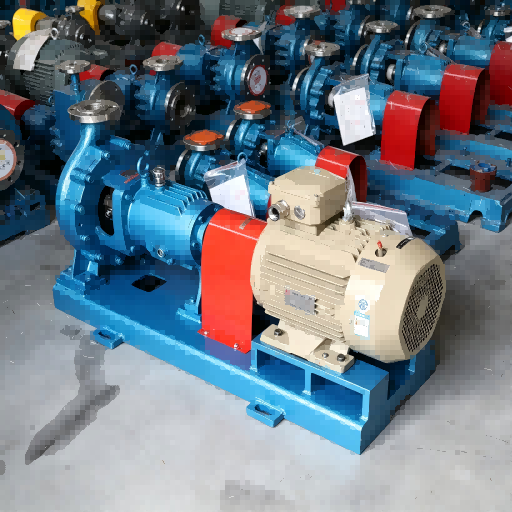

The IH80-50-315 stainless steel centrifugal pump is a chemical centrifugal pump independently developed and manufactured by Anhui Wolong Pump & Valve Co., Ltd. The pump casing, impeller and flow-through parts are all cast from high-quality 304 stainless steel, featuring excellent acid and alkali corrosion resistance, rust-proof performance and hygienic medium conveying capacity, effectively avoiding medium contamination.
This pump model is equipped with a 11kW standard motor, with a rated flow rate of 25m³/h, head of 32m and rotational speed of 1450r/min. Optimized hydraulic flow channel design greatly reduces fluid resistance loss, realizing high operation efficiency, low vibration and low noise during long-term continuous operation. The mechanical seal structure is stable and reliable, effectively preventing liquid leakage, and the equipment is marked with a no dry-running warning to extend the service life of sealing components and the whole pump.
IH chemical centrifugal pumps are designed and manufactured inaccordance with international standards and relevant national standards.Its performance, rated performance points, and size are equivalent to thenational standard ISO2858. National standard number: GB/T5662 Axialsuction centrifugal pump (16 bar) Marking, performance and dimensionsGB/T5566 Technical requirements for centrifugal pumps (II)
This series of pumps adopts various sealing methods according todifferent medium working conditions: external corrugated pipe mechani-cal seal, single end face internal mechanical seal, double end face internalmechanical seal, containerized double end face mechanical seal, andinternal high-temperature and high-pressure corrugated pipe mechani-cal seal. Mechanical seal materials are selected according to different media.
| Model |
Flow rate |
Head |
Efficiency |
NPSH |
Suction x Outlet |
Motor power |
Weight |
| IH80-50-315 |
35 |
127 |
45 |
5 |
80*50 |
45 |
575 |
| 50 |
125 |
50 |
| 60 |
112 |
48 |
FAQ 1
Q: The nameplate marks "No Dry Running". What damage will dry running cause to the pump?
A: Without liquid lubrication and cooling, the mechanical seal will burn out and leak liquid quickly. In severe cases, the impeller and pump casing will be worn, greatly shortening the service life of the whole pump.
FAQ 2
Q: What is the core difference between IH80-50-315 chemical pump and ordinary cast iron centrifugal pump?
A: All wetted parts of this pump are cast of stainless steel, corrosion resistant and free of rust contamination, suitable for chemical, food and pharmaceutical industries. Cast iron pumps are only for clean water and will rust rapidly when conveying corrosive liquid.
